I have a large model that I would like to print and (eventually) fill with resin for strength and stiffness.
When I cut the model into parts, walls are created, which is logical for most cases. However, I’d like to leave those sides mostly open so that when the object is assembled I can pour the resin in and it hardens as a single contiguous piece.

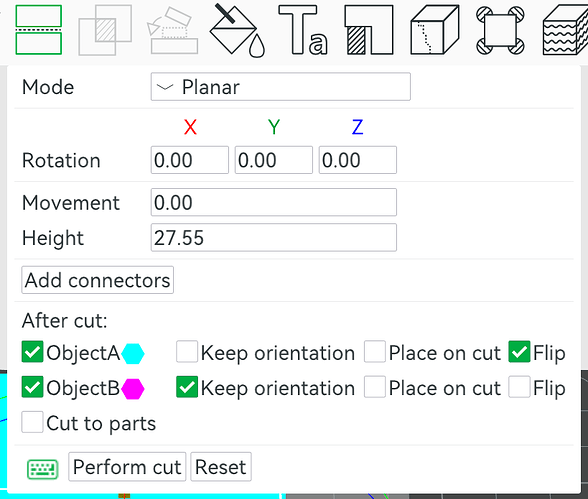

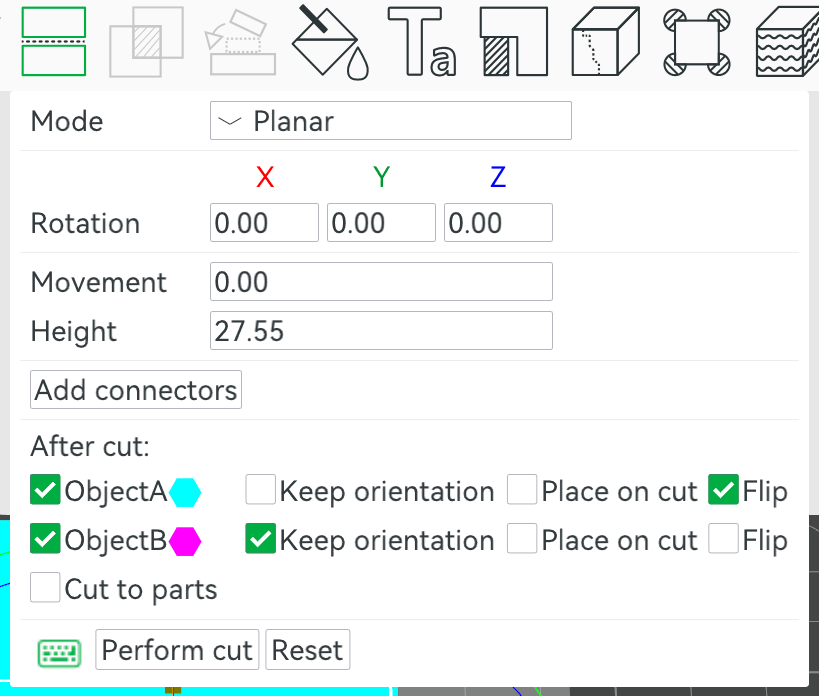

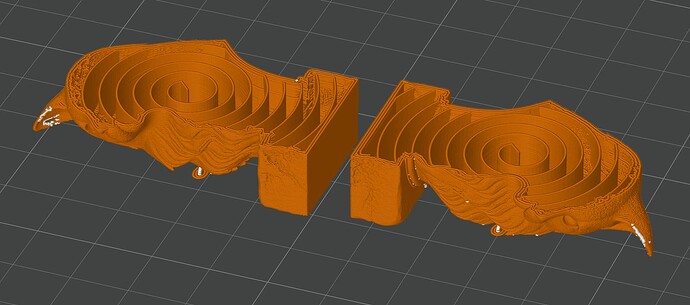

I did attempt to use modifiers with zero wall loops (based on some online searches), but these only appear to recess the walls, rather than expose the infill area.
Welcome to the community! I’m glad you made a post! Unfortunately, although others are surely more knowledgeable than I am, I do not think that there is a way to not generate walls during a cut.
Let me summarise: You want to make a cut in the slicer while also keeping the infill open?

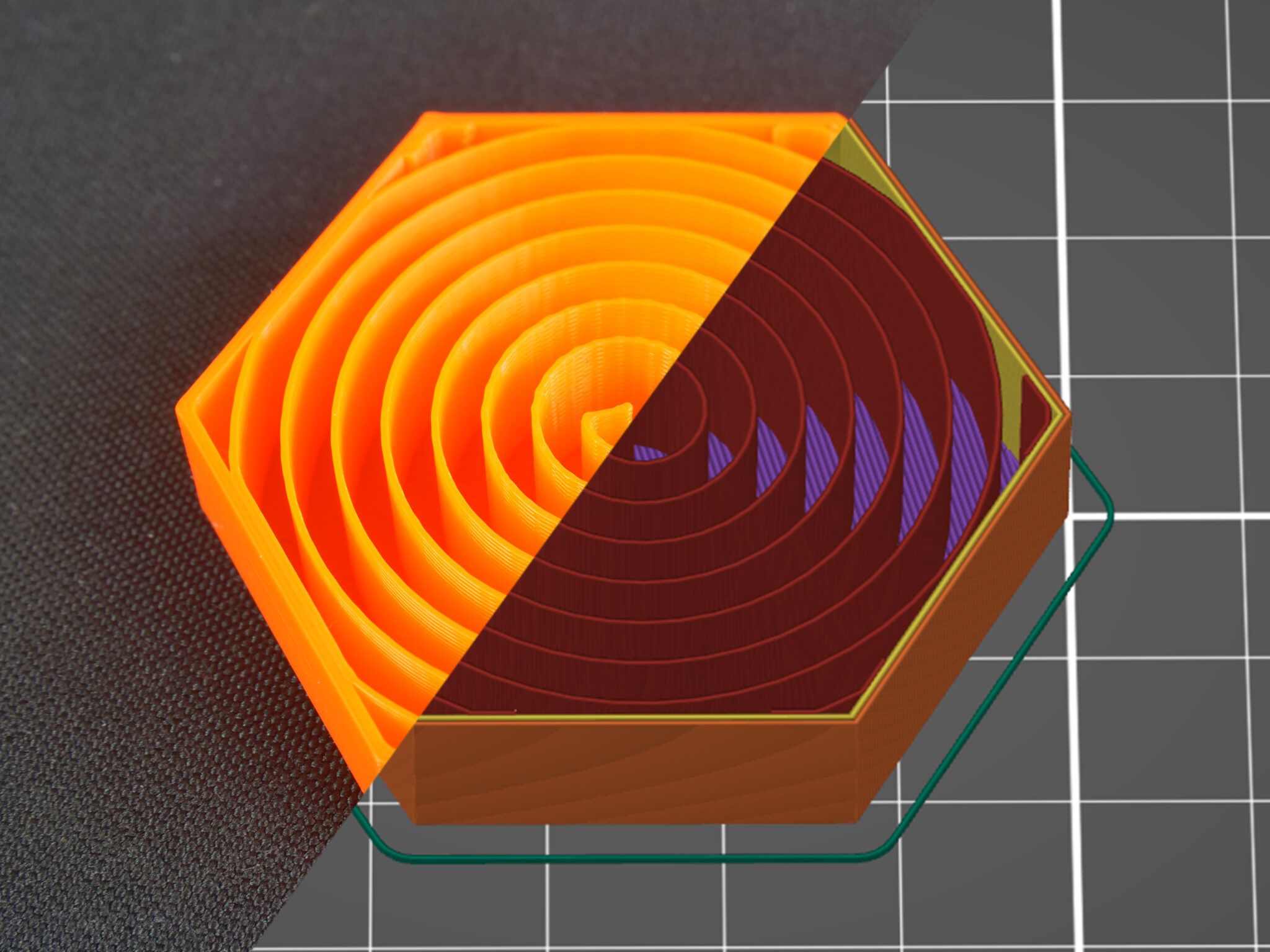

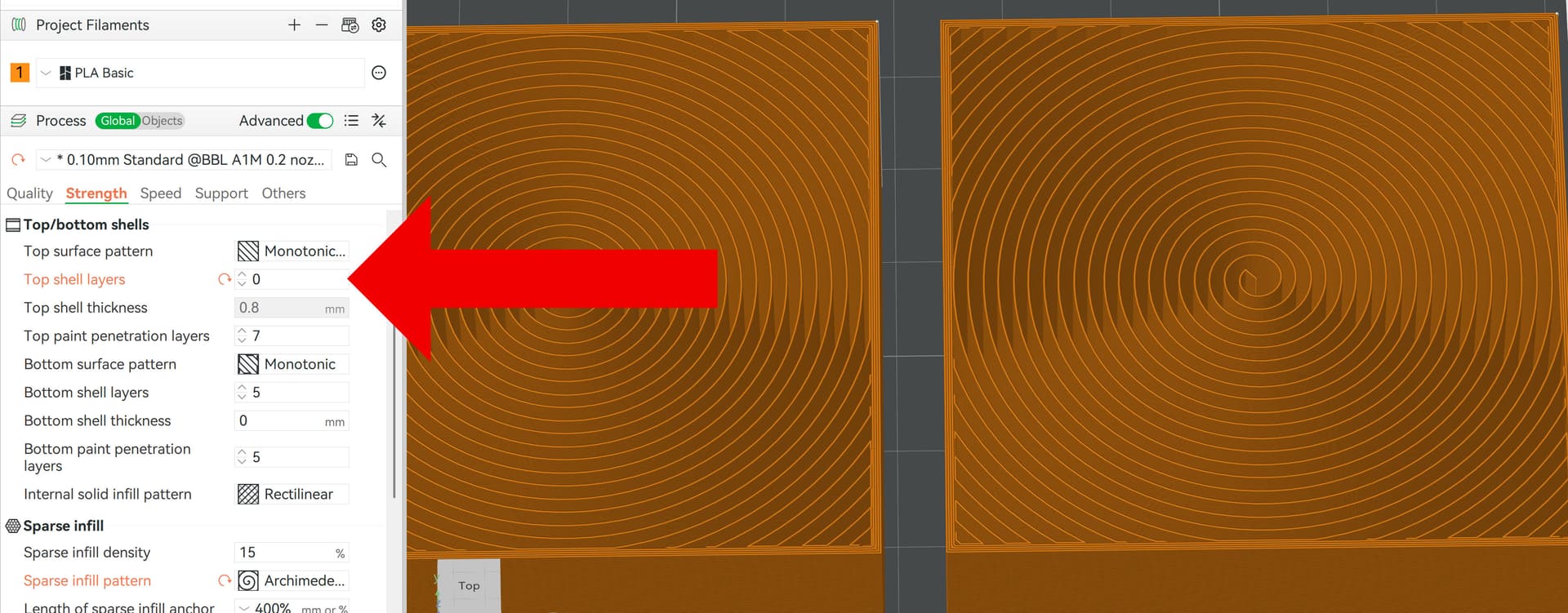

Yes, that is possible, but it involves a few extra steps and you will lose maybe a few millimetres in the process. First, it is important to select an infill that also supports filling like Archimedean chords
However, this approach has one drawback: it only works with objects positioned upwards. Or, to be more precise, the area where the infill should be visible. This means that you have to make sure that the object is actually positioned upwards.

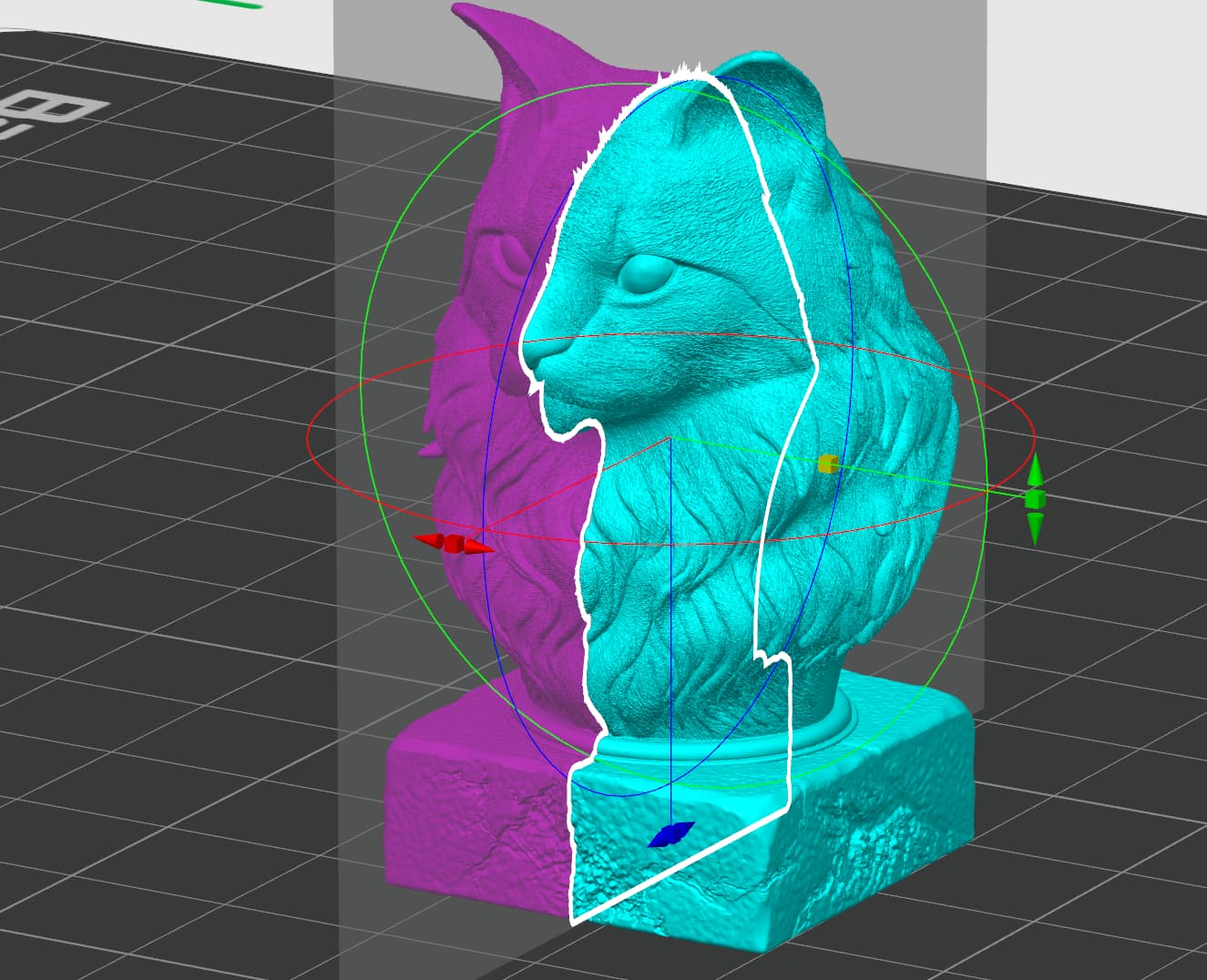

Unfortunately, the object I’m printing is large enough that I can’t just cut it in half - I have to then cut each half of the object to fit them onto the print plates (at the moment arranging the cut parts ends up on 6 plates).
This means that two of the sides are cut on most of the parts (e.g. in the X and Y directions). It would great if there was a feature where you could select a face or wall and set the wrap number to 0 just for that selection!
I wonder if this is something I should attempt to solve in the source CAD application (FreeCAD) for now. I’m guessing this is not a common request, so I’m not surprised that what I’m trying to do doesn’t work initially
Take a look at this topic, it might interest you and give you some helpful tips. It also deals with filling and weighting. In your case, it might be more appropriate to simply leave a hole, fill it, and then seal it. You might also want to check out the topic I linked to; there are some real experts there. Maybe ask the question there, but include photos.
By the way: In case you’re wondering, to post photos, you have to complete the short mini tutorial and confirm the rules during the process. You should have received a message about it.
Do you mean a hole in each cut object? I currently have 14 objects that would need the epoxy to run through once it’s fully assembled.
Thanks for the link - that was a quite amusing account of an unfortunate situation! I wasn’t planning on doing any filling until all of the prints were done and assembled into the full object.
You’ve ran into one of the limitations of Freecad. It was unable to process the thickness step. Could be that the part is too complex for it to calculate the steps necessary to apply the thickness or there’s just a feature somewhere that it’s struggling to compute. Depending on the part geometry, you could clone it, scale it. and use it as a subtractive part to create a hollow body. You can also do that in Bambu Studio.
