Without more information, this is a guess.
As it is at the top of a screw thread and been at the point the thread ended, it may have had little material underneath to support it, thus it caused a new direction.
Use the layer slider to go down each layer in turn to see how it was built up.
I have a similar issue. I would like to have the parallel lines on my print but for some reason the orientation changes in this area.
I’ve tried all the top surface pattern options but none of them fix the issue. I’ve also checked that my model is completely flat.
I would add an image but I can’t attach one to a reply.
Thanks in advance.
This is due to you having only just joined; see below for more information.
You probably can now, if you have been wandering the forum, try again.
Trust Level 1 – Basic
At Discourse, we believe reading is the most fundamental and healthy action in any community. If a new user is willing to spend a little time reading, they will quickly be promoted to the first trust level.
Get to trust level 1 by…
- Entering at least 5 topics
- Reading at least 30 posts
- Spend a total of 10 minutes reading posts
Users at trust level 1 can…
- Use all core Discourse functions; all new user restrictions are removed
- Send PMs
- Upload images and attachments if enabled
- Edit wiki posts
- Flag posts
- Mute other users
regrab that screenshot with the “Line type” preview showing, instead of the “Filament type” preview showing
Is it because it is the end of the threaded area?
well there ya go, it’s different than top surface cuz there’s not enough under it, and it’s now a bridge ![]()
We are still waiting for the screenshot from @GuillermoSarinana
Hi @MalcTheOracle, thank you very much for your quick response and your interest in helping me out.

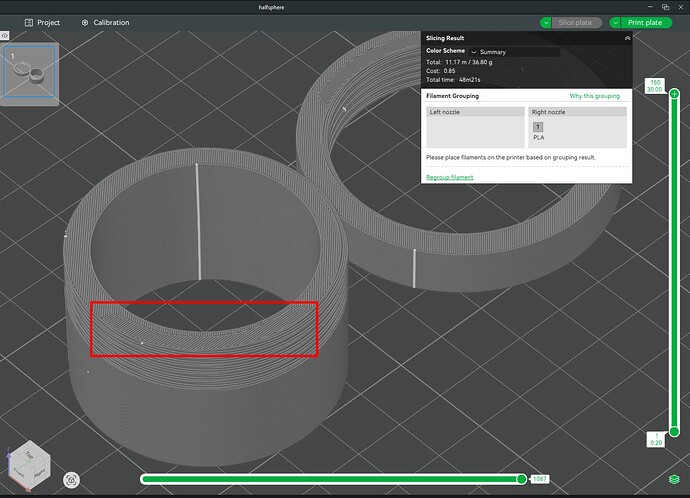

Here’s the screenshot. As you can see there are a couple of triangles that have a different line orientation. I would like to know how to keep the same line orientation outside of those triangles. Thanks!!
That looks to me like the surface is not oriented/rotated flat in relation to the build plate.
It’s hard to tell the 3 dimensionality from the screenshot, but If you look at the layer slider on the right, are each of those triangle’d areas printed on the same layer, or are they on different layers? If different, it might be unstraight in the model, or just unstraight in how it’s oriented on the slicer. Attempt to reorient the model with the rotation tool in very very very small increments till it levels out
@Bullocks, you just saved my day! Y-axis was at -179.97, I jus changed it to 180 and the triangles are gone! Thank you very much for your help!
@Bullocks beat me to it, he is obviously correct.
